Home | Success Stories | Pulper Waste. Power. Profit.

Pulper Waste. Power. Profit.

A Turkish company, KMK Paper, becomes self-sufficient by converting its pulper waste from paper production into a fuel that provides energy for its own operations. The company lowers costs while reducing waste in the environment!

KMK Paper, a leading corrugated paper manufacturer in Turkey, relies on three WEIMA WLK 25 Super Jumbo single-shaft shreddersin its production facilities. One has already been in place for five years at the Kütahya location and two more followed in Kahramanmaras. Every day, more than 100 tons of pulper braids and loose rejects from production are recycled. Very cleverly, the resulting refuse-derived fuel is reused as an energy source for the company’s own production.

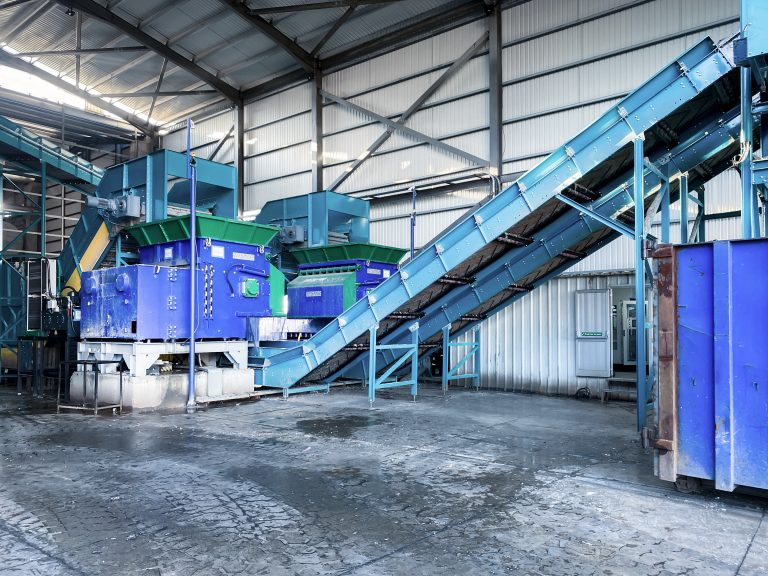

Two WEIMA WLK 25 Super Jumbo single-shaft shredders

Kahramanmaras Paper Industry Incorp. was founded in 1988 in Kahramanmaraş in southeastern Turkey. Initially, it was dedicated to the production of corrugated cardboard, with a capacity of 40,000 tons per year. In the meantime, the volume has almost quadrupled. The company produces an impressive 150,000 tons of paper and board products annually. In addition, the portfolio has steadily expanded to include products such as paper cores, textile board, printing board and gypsum board. The furniture industry has also been supplied regularly for some time. At the beginning of 2012, a second production line was finally put into operation in the province of Kütahya, with a capacity of 100,000 tons per year.

The potential of rejects from recovered paper processing identified

Large amounts of production waste are generated during paper manufacturing. All too often, these then end up in landfills. Fortunately, visionary companies like KMK Paper recognized the potential as a source of secondary raw material early on. This is because most of this waste from the paper industry consists of loose rejects and pulper strings, also known as pulper rejects and pulper ropes. They bundle valuable raw materials such as wire staples, staples, nails, hooks, adhesive tapes, plastic tapes, cords and other foreign materials such as foil remnants. This type of waste is called pulper waste, which can be harnessed with the right shredding technology.

Shredded loose rejects and pulper strings

Shredding loose rejects and pulper strings

Closed energy cycle

KMK Paper recycles the shredded residual materials as Refuse Derived Fuel (RDF) to generate the energy required for paper and board production. In this process, energy generated by burning is used to produce water vapor, which in turn is required for the production of high-quality corrugated board. This process, from production to reuse of pulper waste, is self-contained and extremely efficient.

Shredded pulper ropes can be used for heat through burning of secondary fuel

Secondary fuel (RDF) from pulper rejects

Rejects are used for secondary fuel (RDF)

Refuse derived fuel (RDF) from pulper reject and rejected material fractions

Six meter long pulper reject rope

Over 100 tons of pulper tails end up in the WEIMA shredder every day

The three WEIMA WLK 25 Super Jumbo shredders operate around the clock in three shifts and shred more than 100 tons of residual materials every day. Both are equipped with a 200 kW hydraulic drive, which reduces the pulper pigtails to a particle size of <40 mm. The solid material rotor, which is equipped with 80 x 80 mm octagonal cutting knives, has a diameter of 700 mm and a length of 2,500 mm. The rotor knives are in daily use and last longer than specified by the manufacturer, so that the customer is very satisfied with the service life of the knives.

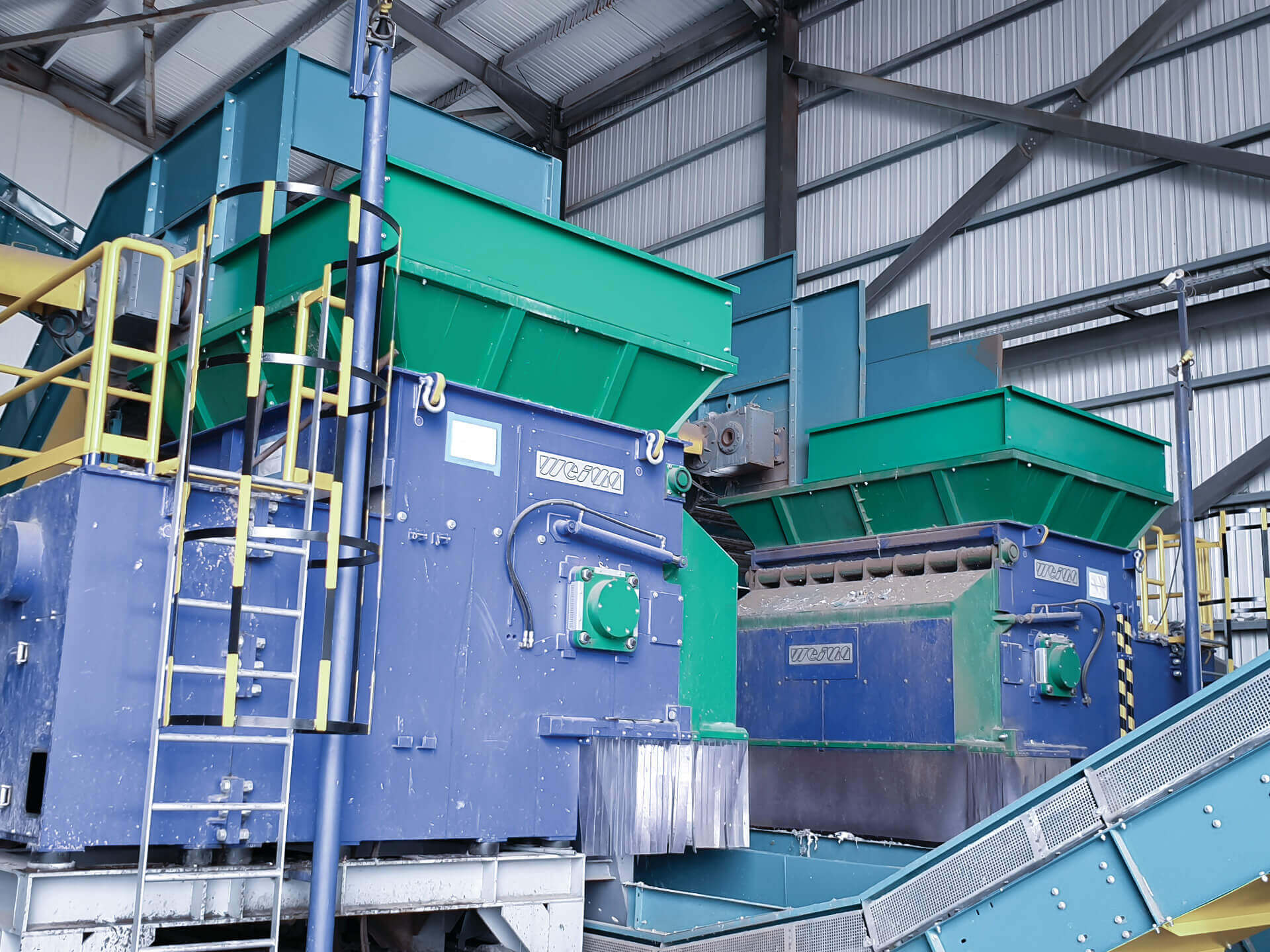

WEIMA WLK 25 Super Jumbo shredders equipped with a 200 kW hydraulic drive

Deputy General Director Bekir Yemşen is responsible for investments and production as a member of the Board of Directors. He draws a consistently positive conclusion about the partnership with WEIMA to decide for two more identical models after more than 5 years of use of the first WLK 25 Super Jumbo:

Murat Göktepe, official WEIMA dealer in Turkey, in front of two WLK 25 SJ shredders

"I have noticed during my trips abroad that WEIMA is especially recommended for its hydraulic technology and knife efficiency. This was the decisive reason to use WEIMA shredders in our production facilities. The efficient operation as well as the robust German design distinguish WEIMA as the manufacturer for shredders at our plant in Turkey. In addition, the shredders convince with a low error rate and easy maintenance."

- Bekir Yemşen
