Shredding and recycling pallets

Information on proper disposal

Pallets, also called transport pallets, are used globally for the safe transport and storage of stackable goods. There are different materials from which pallets are made: for example wood, plastic, corrugated cardboard and sheet metal. The most common are pallets made of wood. Disposable pallets are usually made of cheap softwoods – the boards and squared timber are simply nailed or screwed together. One of the best known is the euro-pallet with standardized dimensions and materials. WEIMA offers suitable shredding machines for all types of pallets.

Why shred pallets?

Pallets can be both a blessing and a curse. Pallets are the ideal helper for logistics tasks. However, wooden pallets in particular take up valuable storage space when they are no longer used. The result: endless, meter-high mountains of discarded transport pallets. This can be remedied by waste management companies that collect the pallets. However, this is expensive and only partially economical. The more efficient solution is to use shredders specially designed for pallet processing. They shred pallets into wood chips, which can then be used as an energy source for your own heating system or sold for profit.

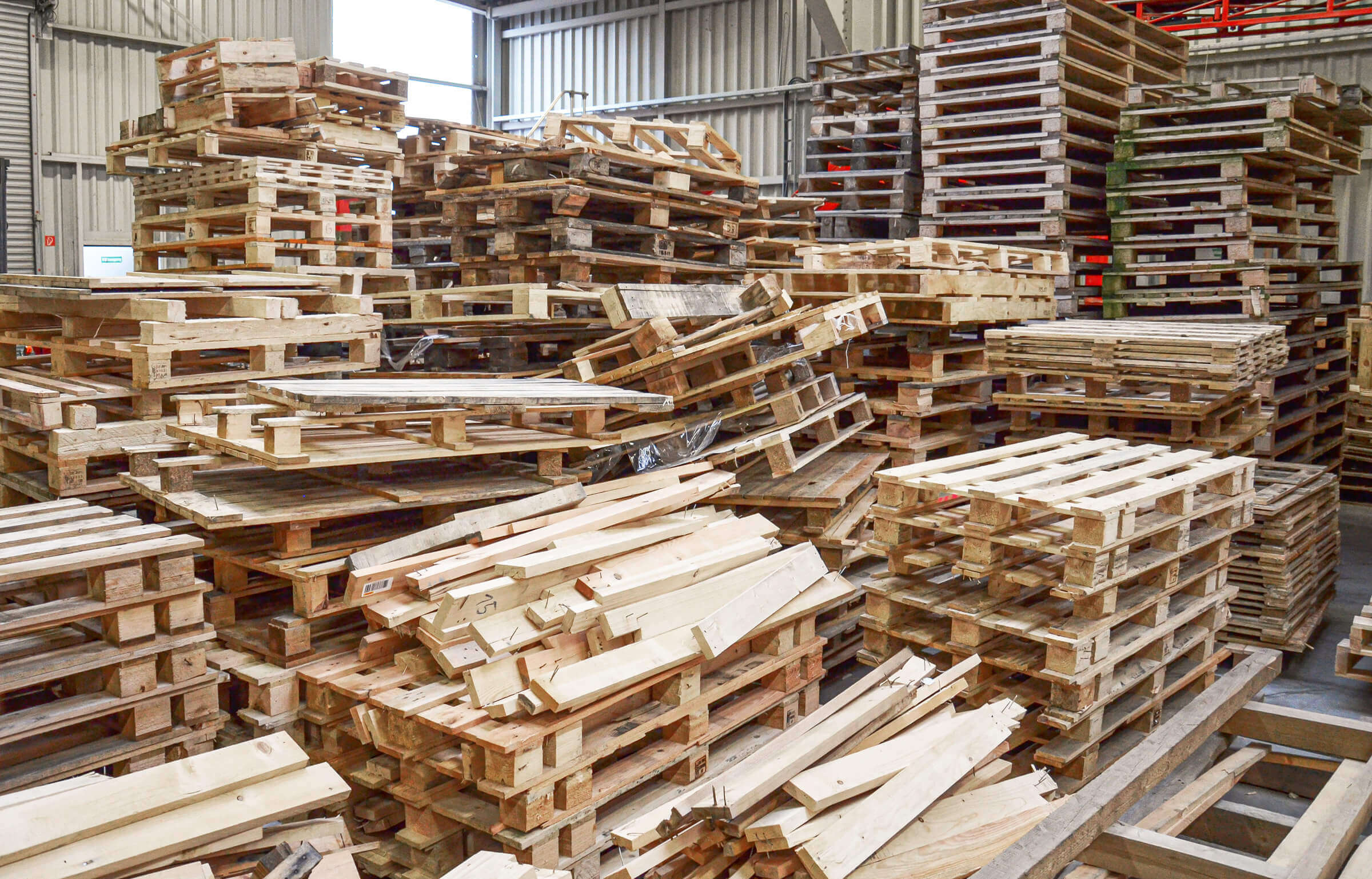

Stack of Palettes

WLK 1500 single-shaft shredder

Waste pallets

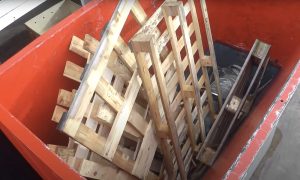

Pallets are shredded with WEIMA WLK 1500

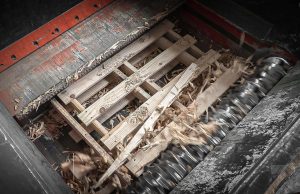

Shredding of pallets

Heating with pallet waste

In Frankenthal, Kartoffel Kuhn shreds used wooden pallets into chips with a WL 15 single-shaft shredder. These are then used to heat the buildings.

Visit Youtube

Pallet types

Pallet made of solid wood, e.g. one-way pallet, euro-pallet
sustainable, very resilient, easy to repair
Pallet made of pressed wood, e.g. INKA or chipboard pallet
environmentally friendly, light, nestable/stackablebr
Pallet made of plastic, e.g. hygienic pallet, clean room pallet
low weight, durable, hygienically advantageous
Pallet made of corrugated cardboard, e.g. light pallet
recyclable, low weight, environmentally friendly

Pallets are available in different materials and in various shapes/sizes. Each of them has its own right to exist and has specific advantages and disadvantages, depending on the application.

All pallets have one thing in common:
WEIMA shredders shred them.

EPAL euro-pallets – the famous exchangeable pallet

With eleven boards, nine wooden blocks and 78 nails, the europool pallet has taken the hearts of logistics companies by storm. The reusable pallet is manufactured according to DIN EN 13698 and is used in particular in the transport industry. The so-called EPAL1 pallet has a length of 800 mm, a width of 1,200 mm and a height of 144 mm. It weighs approx. 25 kg with a load capacity of approx. 1,500 kg. If the base is flat and solid, the maximum load on stacking is 4,000 kg. The original pallets have the typical EPAL branding and various country codes, registration numbers and license numbers. It is estimated that about 500 million EPAL1 pallets are currently in circulation worldwide. (Source: EPAL)

EPAL euro-pallets

Reasons for non-exchangeable EPAL pallets

Broken boards
Splintered top or bottom boards
Missing boards
Split or missing blocks
Protruding blocks

EPAL pallets may only be repaired in accordance with the technical regulations of EPAL (European Pallet Association). Only in this way can the load-bearing capacity and thus safety of the pallets be guaranteed.

Three-stage concept

At Augustinuswerk Jessen, three tons of pallet waste are processed every day: The WEIMA WL 8 single-shaft shredder is filled by forklift truck. A magnet is mounted above the discharge conveyor belt, which separates nails or the like. The wood shavings then go to a hammer mill where they are further shredded to approx. 8 mm. A WEIMA TH 1500 briquette press then presses the material into briquettes with a stable shape. These are packaged and sold at a profit.

Visit Youtube

Examples from trade and industry

Metal separation

WLK 1500 single-shaft shredder

Shredding pallets View into the shredder

Transport pallets

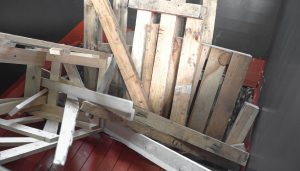

Solid wood pallets

screws, nails and spax in wooden pallets

Nails and screws

Euro-pallets

Magnetic separator

Dried wood chips

Homogenous wood chips after shredding

Disposable pallets

Pre-broken wooden pallets

Pallet shredder

Shredder and briquette press

Loading by forklift truck

Woodwolf screw

Overband magnet

Pallet shredding

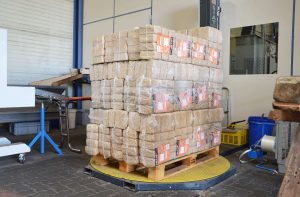

Wood briquettes ready for sale

Inquire about a pallet shredder today Request a quote

No need to fear screws and nails

WEIMA shredders shred impurities such as screws, nails, metal staples and spax without any problems. Metals can be separated after shredding with an crossbelt magnet or a magnetic drum. Downstream machines such as hammermills and briquette presses are thus protected from unwanted metal debris.

Nails

Metal separator

Pre-broken wood pallets

WEIMA portfolio for the shredding of pallets

High throughput single-shaft shredder

The WEIMA WLK 1500 single-shaft shredder shreds pallets without any problems on a working width of 1,500 mm.

To WEIMA WLK 1500

WLK 1500

Shredding of pallets

Transport pallets

The pallet pre-crusher

The Woodwolf was developed especially for shredding large pallets and chipboard. Using a screw conveyor, the primary crusher crushes and shreds the fed material to approx. DIN-A4 large pieces (about the size of a piece of notebook paper).

To WEIMA Woodwolf

WEIMA Woodwolf

Breaking pallets

Only at WEIMA

Extremely robust machine design
for the most difficult applications

Easy maintenance
for minimized downtimes

Many drive options
for maximum throughput

Fast service
for highest customer satisfaction

All from one source:
Machine, conveyor system, metal detection, support, spare and wear parts

Two-stage pallet processing

A WEIMA Woodwolf breaks wood pallets roughly before a WL 10 shredder shreds the residual wood to a homogenous chip size for the subsequent heating system.

And what comes next?

Wood chip heating with bunker

Burning of wood briquettes in the wood burning oven

Burning wood in the wood burning oven

Chip bunker with wood chips from pallets

Discharge screw conveyor transports wood chips into dry chip bunker

Shredded pallets of wood chips in the dry silo

Dried wood chips

Briquetting
The shredded wood chips can be compressed with WEIMA briquette presses. The briquettes can be sold profitably and are also suitable for burning in heating systems.

Learn more about briquetting

Burning
Wood chips can also be used directly as fuel to heat buildings and halls.The combustion of wood chips is particularly sustainable, since one uses already existing residual wood and avoids additional deforestation. The CO₂ emissions from burning wood chips are significantly lower than those from oil: approx. 28 g/kWh compared to 318 g/kWh (Source). Wood chips also make sense from an economic point of view, because they offer double savings: the disposal costs of the pallets and the acquisition costs of the additional fuel are eliminated.

Unbeatable combination: shredder and briquette press

A WEIMA WLK 1500 single-shaft shredder shreds used wooden pallets. The overband magnet separates nails and screws. The downstream TH 1500 Duo briquette press compresses the produced wood chips into strong briquettes.

See for yourself

The WEIMA show room is equipped with shredding and briquetting machines of all sizes and technologies. This enables us to simulate your application as realistically as possible. You have the possibility to send us your material or visit us directly in Ilsfeld. From our gallery you have the best view directly into the cutting chamber. So you can observe the shredding process live.
